Spray-on antennas open new possibilities
Antennas made from MXene ‘spray paint’ could unlock the potential of smart, connected technology.
The promise of wearable devices, functional fabrics, the Internet of Things and their next-generation technological cohort seems tantalisingly within reach. Yet researchers will tell you a prime reason for their delayed arrival is the problem of seamlessly integrating antennas with shape-shifting and flexible ‘things’.
In research recently published in Science Advances, the group reports on a method for spraying invisibly thin antennas, made from a type of two-dimensional, metallic material called MXene, that perform as well as those being used in mobile devices, wireless routers and portable transducers.
“This is a very exciting finding because there is a lot of potential for this type of technology,” said Kapil Dandekar, a professor of Electrical and Computer Engineering in the College of Engineering, who directs the Drexel Wireless Systems Lab, and was a co-author of the research.
“The ability to spray an antenna on a flexible substrate or make it optically transparent means that we could have a lot of new places to set up networks — there are new applications and new ways of collecting data that we can’t even imagine at the moment.”
The researchers, from the college’s Department of Materials Science and Engineering, report that the MXene titanium carbide can be dissolved in water to create an ink or paint. The exceptional conductivity of the material enables it to transmit and direct radio waves, even when it’s applied in a very thin coating.
“We found that even transparent antennas with thicknesses of tens of nanometres were able to communicate efficiently,” said Asia Sarycheva, a doctoral candidate in the A.J. Drexel Nanomaterials Institute and Materials Science and Engineering Department.
“By increasing the thickness up to 8 microns, the performance of the MXene antenna achieved 98% of its predicted maximum value.”
Preserving transmission quality in a form this thin is significant because it would allow antennas to easily be embedded — literally, sprayed on — in a wide variety of objects and surfaces without adding additional weight or circuitry or requiring a certain level of rigidity.
“This technology could enable the truly seamless integration of antennas with everyday objects which will be critical for the emerging Internet of Things,” Dandekar said.
“Researchers have done a lot of work with non-traditional materials trying to figure out where manufacturing technology meets system needs, but this technology could make it a lot easier to answer some of the difficult questions we’ve been working on for years.”
Initial testing of the sprayed antennas suggests that they can perform with the same range of quality as current antennas, which are made from familiar metals but are much thicker than MXene antennas. Making antennas smaller and lighter has long been a goal of materials scientists and electrical engineers, so this discovery is a sizeable step forward both in terms of reducing their footprint as well as broadening their application.
“Current fabrication methods of metals cannot make antennas thin enough and applicable to any surface, in spite of decades of research and development to improve the performance of metal antennas,” said Yury Gogotsi, Distinguished University and Bach professor of Materials Science and Engineering in the College of Engineering, and Director of the A.J. Drexel Nanomaterials Institute, who initiated and led the project.
“We were looking for two-dimensional nanomaterials, which have sheet thickness about a hundred thousand times thinner than a human hair; just a few atoms across, and can self-assemble into conductive films upon deposition on any surface. Therefore, we selected MXene, which is a two-dimensional titanium carbide material, which is stronger than metals and is metallically conductive, as a candidate for ultrathin antennas.”
Drexel researchers discovered the family of MXene materials in 2011 and have been gaining an understanding of their properties, and considering their possible applications, ever since. The layered two-dimensional material, which is made by wet chemical processing, has already shown potential in energy storage devices, electromagnetic shielding, water filtration, chemical sensing, structural reinforcement and gas separation.
MXene materials have drawn comparisons to promising two-dimensional materials such as graphene. As described in the paper, the Drexel researchers put the spray-on antennas up against a variety of antennas made from these new materials, including graphene, silver ink and carbon nanotubes. The MXene antennas were 50 times better than graphene and 300 times better than silver ink antennas in terms of preserving the quality of radio wave transmission.
“The MXene antenna not only outperformed the macro and micro world of metal antennas, we went beyond the performance of available nanomaterial antennas, while keeping the antenna thickness very low,” said Babak Anasori, a research assistant professor in the A.J. Drexel Nanomaterials Institute.

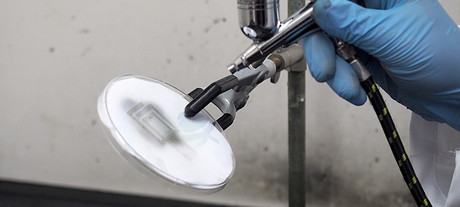

“The thinnest antenna was as thin as 62 nanometres — about a thousand times thinner than a sheet of paper — and it was almost transparent. Unlike other nanomaterials fabrication methods, which require additives, called binders, and extra steps of heating to sinter the nanoparticles together, we made antennas in a single step by airbrush spraying our water-based MXene ink.”
The group initially tested the spray-on application of the antenna ink on a rough substrate (cellulose paper) and a smooth one (polyethylene terephthalate sheets). The next step for their work will be looking at the best ways to apply it to a wide variety of surfaces from glass to yarn and skin.
Originally published here.
