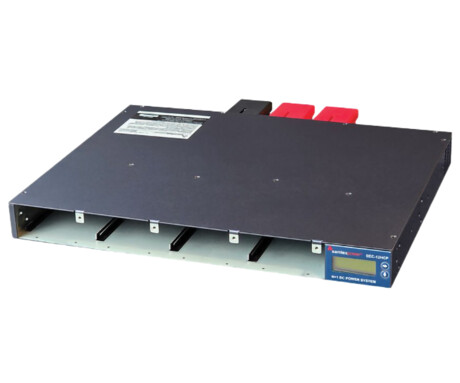

Samlex SEC12HCP 12V Advanced N+1 DC Power System

Click2Contact

The Samlex 12V Advanced N+1 DC Power System provides redundant, scalable DC power for critical infrastructure in a compact 1U rack-mount system.

Combining N+1 redundancy, advanced remote monitoring, integrated battery back-up capability and comprehensive system protection, the SEC-HCP Series has been designed to provide the reliability and flexibility required for telecommunications, network infrastructure, public safety communications, industrial automation and other mission-critical environments. Scalable modular architecture supports the parallel connection of up to two systems for increased capacity and redundancy, and provides comprehensive protection against overvoltage, overcurrent, short circuits and overheating. The integrated two-stage battery charger operates independently of the power modules, preserving full system output capacity (12 and 28 V models now with 24 V to follow).

Note that SEC-HCP systems require compatible SEC-HSM Hot-Swappable Power Modules for operation. Modules are sold individually to allow custom system sizing and future expansion. Modules are available in 12, 24 and 48 V DC configurations to suit a wide range of applications. The Samlex 12V Advanced N+1 DC High Power DC System is available only from AceComms.

For more information: https://acecomms.com.au/samlex/samlex_psu_rackmount/.
