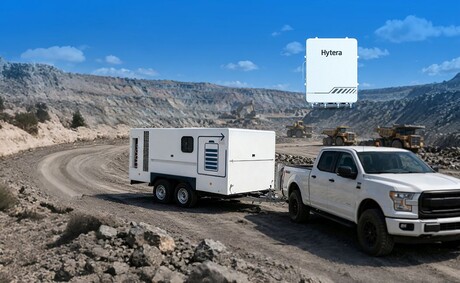

Hytera DIB-R6 SMART TETRA Base Station

In mission-critical industries such as public safety, transportation, energy, mining, airports and ports, communication networks must deliver more than basic coverage. They must be secure, reliable, flexible and easy to deploy, even in harsh outdoor environments and remote areas.

As traditional TETRA base stations often require equipment rooms, air conditioning, long feeder cables and complex site construction, operators are increasingly looking for a lighter and more cost-efficient solution that can be deployed in both indoor and outdoor environments. The Hytera DIB-R6 SMART Base Station is designed to address these challenges.

With its compact all-in-one design, high transmit power, hardware-level security, flexible networking and low power consumption, DIB-R6 SMART provides a new deployment option for modern TETRA networks.

SMART design for mission-critical communications

The core advantages of the DIB-R6 SMART can be summarised by the word SMART: secure, multi-carrier and SDR, all-in-one, reliable and total cost-efficiency.

Secure: hardware-level protection

Security is a fundamental requirement for mission-critical communications. DIB-R6 SMART supports Secure Boot, which verifies the system from the underlying firmware level to help prevent malicious tampering.

It also integrates a TPM 2.0 chip for hardware-level key protection. Root keys are stored in isolated hardware, reducing the risk of software-based theft. In addition, SSD hardware encryption protects the operating system, software and license data, helping safeguard sensitive communications and system information.

This makes DIB-R6 SMART well suited for industries such as public safety, government, transportation and energy, where communication security is essential.

Multi-carrier and SDR: flexible capacity expansion

DIB-R6 SMART supports 1 to 4 carriers and can be expanded to up to 8 carriers by cascading. With SDR technology, capacity can be expanded by remotely activating licenses, without adding extra hardware.

This brings greater flexibility to network planning and future expansion. Operators can start with a smaller capacity and scale up when user demand increases. Frequency management can also be performed remotely through software, simplifying network adjustment and maintenance.

All-in-one: compact and easy to deploy

Unlike traditional base stations that depend on equipment rooms, air conditioning and long feeder cables, DIB-R6 SMART adopts a highly integrated all-in-one design.

With a weight of less than 17 kg and a volume of less than 20 litres, it is easy to transport, install and deploy. The product supports centralised, distributed and hybrid networking. In distributed deployment, it can operate without a dedicated core IPN server, helping simplify the overall network architecture.

This design significantly reduces requirements for site construction and enables faster rollout in outdoor, remote or temporary communication scenarios.

Reliable: built for harsh environments

DIB-R6 SMART is designed for demanding outdoor environments. It supports an operating temperature range of -40°C to +60°C, provides IP66 and IP68 protection, and offers 20 kA lightning protection.

The product also supports multi-level redundancy, including base station redundancy, controller redundancy, main control channel redundancy and optical link redundancy. These capabilities help ensure stable operation and service continuity in critical communication networks.

Whether deployed along borders, railways, oilfields, mines, ports or remote mountain areas, DIB-R6 SMART is built to deliver reliable performance.

Total cost-efficiency: lower deployment and operational cost

One of the key advantages of DIB-R6 SMART is its ability to reduce total cost of ownership.

With 50 W transmit power and a near-antenna deployment design, it reduces feeder loss and helps achieve wider and more stable coverage. This can reduce the number of sites required for wide-area deployment.

In addition, the 4-carrier power consumption of DIB-R6 SMART is less than 340 W, significantly lower than traditional base stations. This low-power design also supports small power cabinets and solar power supply, making it suitable for remote and unmanned sites.

Compared with traditional base station deployment, DIB-R6 SMART can help reduce transportation, installation, infrastructure, energy and maintenance costs.

Designed for multiple industry scenarios

In public safety, DIB-R6 SMART can be used for border coverage, mountain areas, emergency rescue, forest fire response, geological disaster response, urban coverage extension and large-scale event security. Its fast deployment, wide coverage, and hardware-level security make it a strong choice for secure and reliable communications.

In rail transportation, it can be deployed along railway lines, intercity routes, metro extensions and remote unmanned sections. Its lightweight design, low power consumption and remote maintenance capability help reduce site construction and O&M costs.

In airports and ports, DIB-R6 SMART can support daily dispatching and emergency communications for security, fire services, ground handling, baggage handling, customs, maintenance, refueling, catering and other operational teams. For coastal ports, its IP66/IP68 protection and outdoor reliability help ensure stable operation in humid and high-salinity environments.

In energy, oil and gas, mining, and utilities, DIB-R6 SMART is suitable for oilfields, open-pit mines, gas pipelines, water resources and power transmission lines. Its wide coverage, low power consumption, lightning protection and remote operation capabilities make it ideal for harsh and remote environments.

Smooth evolution for existing TETRA networks

DIB-R6 SMART can be seamlessly integrated with the Hytera ACCESSNET-T IP system and is compatible with DIB-R5 base stations. This allows it to serve as a coverage extension or capacity supplement for existing TETRA networks.

Conclusion

The future of mission-critical communication networks requires solutions that are more secure, more flexible, easier to deploy and more cost-efficient.

The Hytera DIB-R6 SMART Base Station brings together hardware-level security, SDR-based capacity expansion, compact all-in-one design, strong outdoor reliability, wide-area coverage and low power consumption. It provides a powerful and practical solution for industries that need dependable TETRA communications in both traditional and challenging deployment scenarios.

With more coverage, enhanced security, and lower costs, DIB-R6 SMART helps mission-critical users build safer, wider, and greener communication networks — keeping every mission always connected.
